This Webpage has moved to: https://www.springerparts.com/nomad-pumps/nomad-80-120062-1
Unit of Measure

Model #

 N/A NPF80/PPPP/TFF/TF/PTV/FL/B/W

WETTED M.O.C.

 N/A Polypropylene

Diaphragm Material

 N/A PTFE - UFI Santoprene® back up

Elastomers

 N/A Viton® Encapsulated, PTFE

Displacement per Cycle

 N/A 0.99 gal3.75 lit

Solids Handling

 N/A 0.5 in13 mm

Fluid Inlet Size

 N/A 3 in76 mm

Fluid Outlet Size

 N/A 3 Flange in76 Flange mm

Length

 N/A 36 Inch36 in0.9144 m914.40 mm

Width

 N/A 23 Inch23 in0.5842 m584.20 mm

Height

 N/A 50 Inch50 in1.2776 m1277.62 mm

N/A

  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

Non-Wetted Material

 N/A Polypropylene

Check Valve Seat

 N/A Viton® Encapsulated

Max. Flow Rate

 N/A 207 gpm783.58 lpm

Similar or Comparable To Brand

 N/A Nomad®

Similar or Comparable To Part#

 N/A 80-120062-1

Customs Code

 N/A Schedule B Code 8413.50.00.50

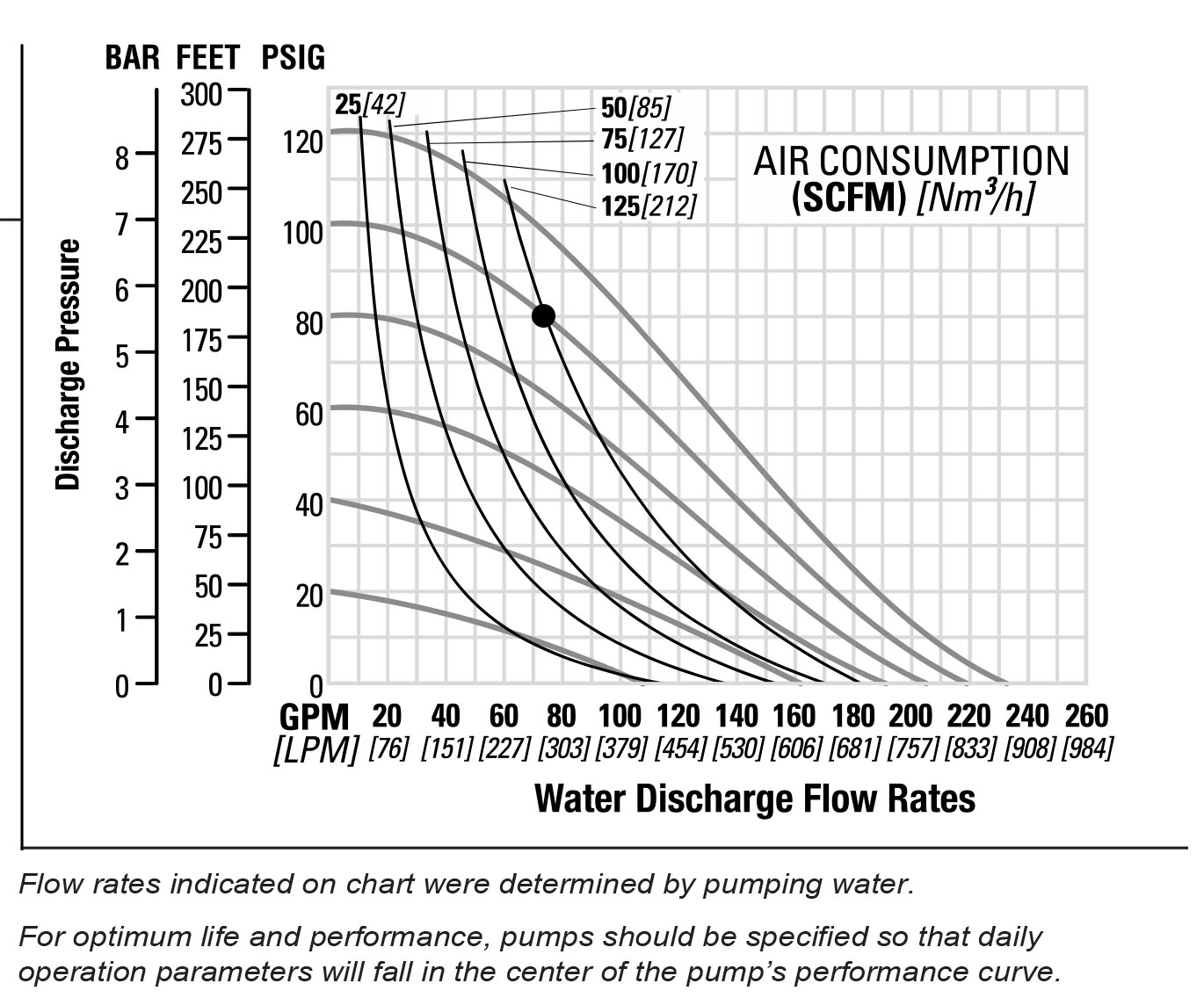

Performance Curves

^
