Unit of Measure

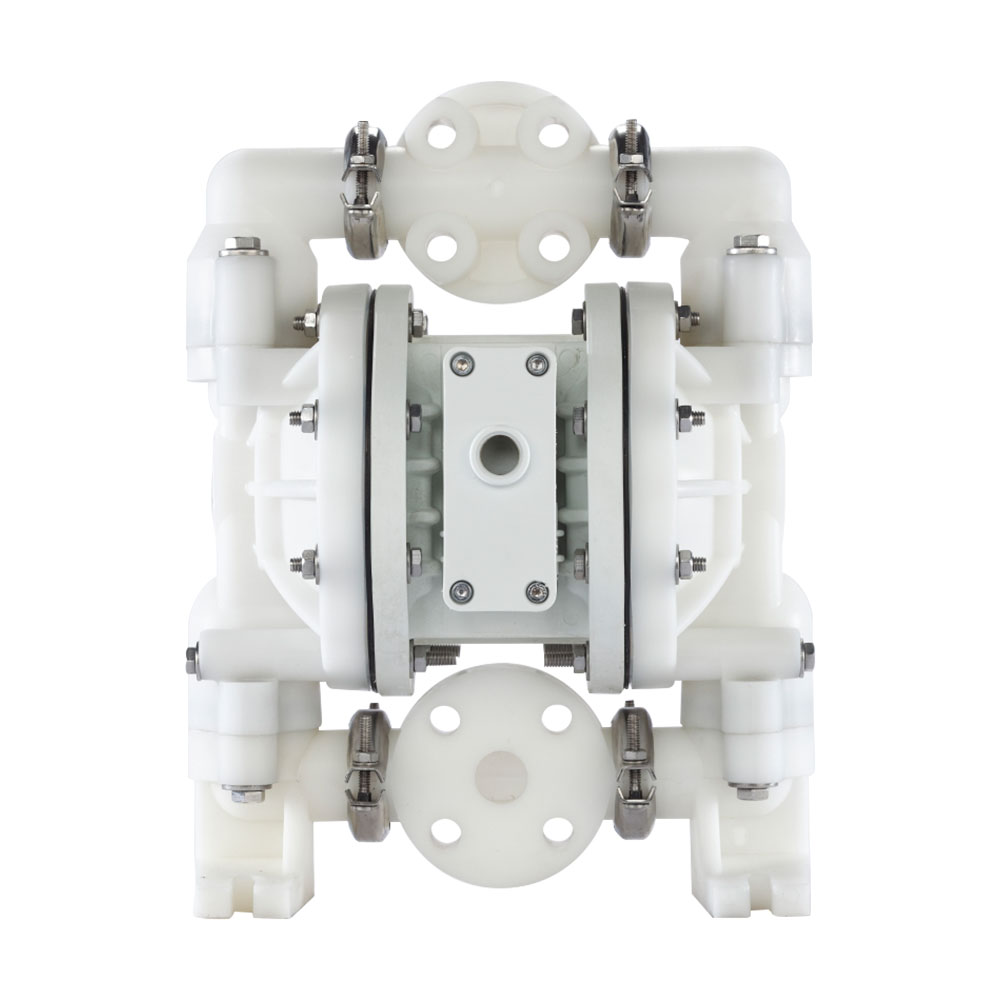

Model #

N/A NPF25A/PPPP/VT/TF/PTF/FL/B

WETTED M.O.C.

N/A Polypropylene

Diaphragm Material

N/A Viton®/FKM

Elastomers

N/A PTFE, PTFE

Displacement per Cycle

N/A 0.091 gal0.34 lit

Solids Handling

N/A 0.125 in3 mm

Fluid Inlet Size

N/A 1 in25 mm

Fluid Outlet Size

N/A 1 Flange in25 Flange mm

Length

N/A 16 Inch16 in0.4064 m406.40 mm

Width

N/A 8 Inch8 in0.2048 m204.79 mm

Height

N/A 16 Inch16 in406.40 mm

N/A

  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

Non-Wetted Material

N/A Polypropylene

Check Valve Seat

N/A Polypropylene

Max. Flow Rate

N/A 34 gpm128.70 lpm

Similar or Comparable To Brand

N/A Nomad®

Similar or Comparable To Part#

N/A 25-901268

Customs Code

N/A Schedule B Code 8413.50.00.50


Performance Curves

^
