This Webpage has moved to: https://www.springerparts.com/nomad-pumps/nomad-40-12681
Unit of Measure

Model #

 N/A NPF40/PPPP/VT/VT/PTV/FL/B

WETTED M.O.C.

 N/A Polypropylene

Diaphragm Material

 N/A Viton/FKM

Ball M.O.C.

 N/A Viton/FKM

Elastomers

 N/A Viton Encapsulated, Viton/FKM, Viton/FKM

Displacement per Cycle

 N/A 0.15 gal0.57 lit

Solids Handling

 N/A 0.25 in6 mm

Fluid Inlet Size

 N/A 1.5 Flanged in38 Flanged mm

Fluid Outlet Size

 N/A 1.5 Flanged in38 Flanged mm

Length

 N/A 19 Inch19 in0.4775 m477.52 mm

Width

 N/A 12 Inch12 in0.2997 m299.72 mm

Height

 N/A 26 Inch26 in668.02 mm

M.O.C

 N/A Polypropylene

N/A

  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

Check Valve Seat

 N/A Polypropylene

Max. Flow Rate

 N/A 84 gpm317.97 lpm

Similar or Comparable To Brand

 N/A Nomad®

Similar or Comparable To Part#

 N/A 40-12681

Customs Code

 N/A Schedule B Code 8413.50.00.50
HS Code 8413.50.00

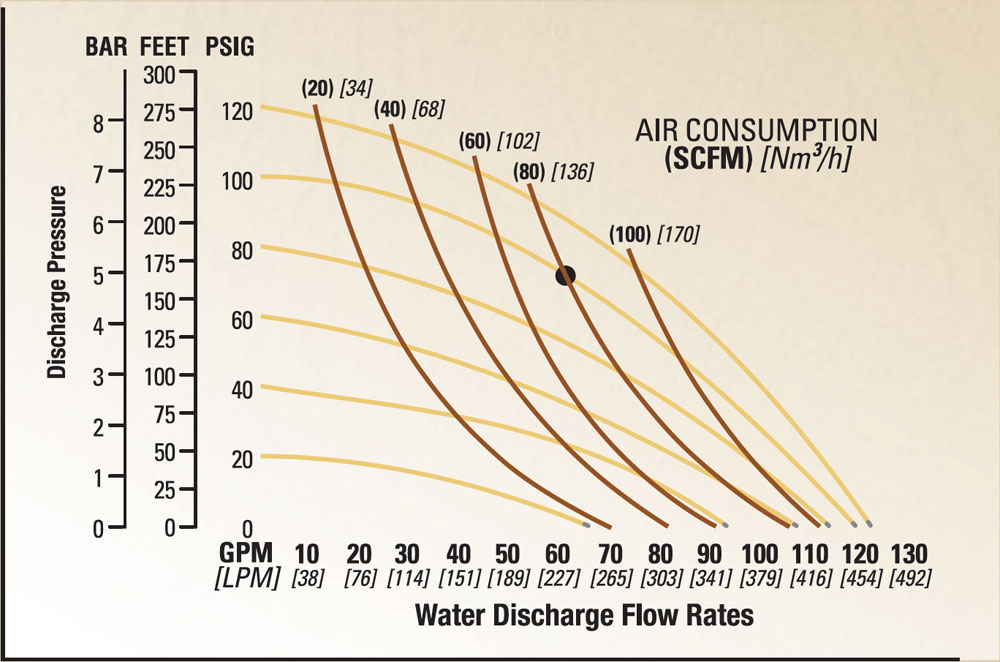

Performance Curves

^
